Directions: Read carefully and examine the diagrams!
1. |
Given the diagram at the right with straight lines m, n and t.
Which statement could always be used to prove m || n ?
Choose:
|
 |
|
2. |
Given m || n.
If m∠4 = 3x + 10 and m∠8 = 5x - 22, what is the value of x?
Choose:
|
|
|
3. |

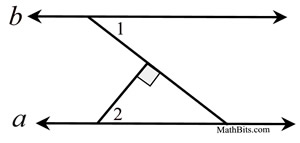

Given a || b and a perpendicular as shown. If m∠1 = 3x + 13 and
m∠2 = 5x - 3, find the number of degrees in m∠2.
Choose:
|
|
|
4. |

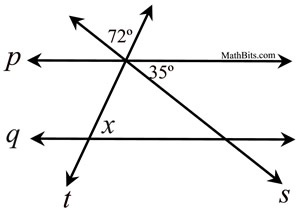

Given straight lines p, q, t, and s and angles as marked.
Which value of x will make lines p and q parallel?
Choose:
|
|
|
5. |

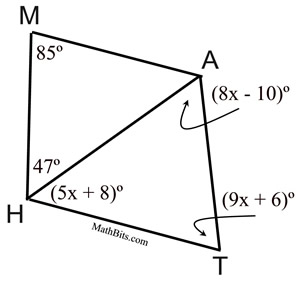

Given quadrilateral MATH as shown at the right.
a) Find the value of x.
Choose:
b) Find the m∠AHT.
Choose:
|
 |
| |
c) Which of the following statements is true?
Choose:
|
|
6. |
Given straight lines p, q and t.
If m∠1 = 8x - 39 and m∠2 = 4x + 15, for which value of x will p || q ?
Choose:
|
|
|
7. |

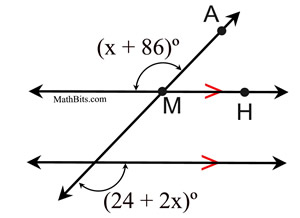

Given the diagram at the right as marked.
How many degrees are in ∠AMH ?
Choose:
|
|
|
8. |
Given the diagram at the right as marked.
What is the value of x?
Choose:
|
|
|
9. |

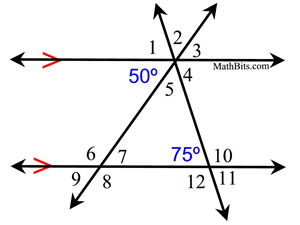

Given the diagram shown at the right. Assume all lines are straight.
Find the measures of all of the numbered angles 1 through 12.
|
|
|
|
|
10. |
Given the diagram at the right as marked.
Find the values of x and y.
|
|
|

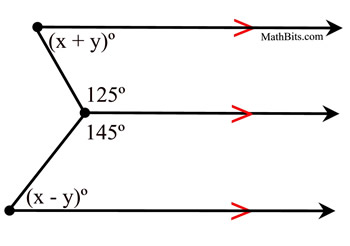

11. |
Choose:
|
|
|
12. |

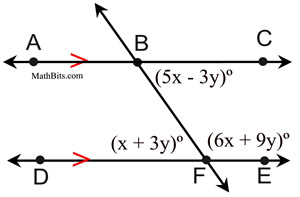

m∠CBF = (5x - 3y)º
m∠BFE = (6x + 9y)º
m∠DFB = (x + 3y)º
Find the m∠BFE.
Choose:
|
|
|
