Practice Page
Directions: Read carefully!
1.
Given circle O with diameter cd perpendicular to chord ab.
If AE = 8 inches, find EB.

Choose:
8 inches
10 inches
12 inches
16 inches
chordp1





2.
Given circle O with chords CD = 12 and
AB = 12. Perpendiculars are drawn from O to E and to F. The radius of the circle is 10. Find OE.

Choose:
4
6
8
8.5
chordp2





3.
Given circle O with perpendicular at F.
AF = 2x + 12 and FB = 4x - 40.
Find AB.

Choose:
26
32
64
128
chord3





4.
Given circle O with chordp4m.
CD = 14 and OB = 9
Find AB.

Choose:
9
12
14
15
chordp4





5.
Given circle O with diameter cdparallel to chord ab.
chord6pm

Choose:
45º
48º
50º
96º
chordp6





6.
Given circle O with quadrilateral ABCD and
chord cd parallel to chord ab.
chord5pm

Choose:
80º
100º
140º
150º
chordp5





7.
Given circle O with a radius of 5, and BE = 2. Diameter abis perpendicular to chord cd. Find CD.

Choose:
3
4
8
10
chordpm





8.
Given circle O with a radius of 6, and OE = 2. Diameter abis perpendicular to chord cd. Find DE.

Choose:
4rad3
4rad2
8rad3
8rad2
chordp8





9.

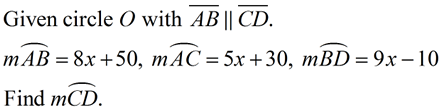

chord9m

Choose:
10º
70º
80º 130º
chord9





10.
chordp10m
Choose:
25
 30
34 60
chordp10
